Exporting groups

Export one group’s frequencies as CSV or in Sennheiser, Shure, Wisycom, WiNRADiO, and SDR++ formats.

Export a group

1. Click the group’s Share Group button and choose Export Group as….

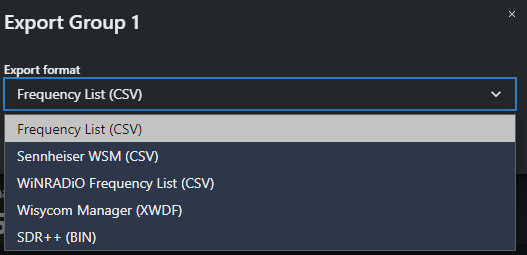

2. Pick an Export format and click Export. Files are named after the site, zone, and group.

Export formats

Format	Use it for
Frequency List (CSV)	Spreadsheets and other tools
Sennheiser WSM (CSV)	Wireless Systems Manager — see Exporting frequencies from Coord to WSM
Shure Wireless Workbench (CSV)	WWB — see Exporting frequencies from Coord to WWB
Wisycom Manager (XWDF)	Wisycom Manager
WiNRADiO Frequency List (CSV)	WiNRADiO scanning software (SoundBase Pro)
SDR++ (BIN)	SDR++ frequency bookmarks (SoundBase Pro)

Note

• The export item is disabled while the group has no frequencies, and hidden for frequency-hopping groups (ranges, not lists). Sennheiser Spectera groups instead offer Export Configuration in their ⋮ menu, producing a Spectera JSON config file.
• There’s no group-level import — frequencies enter groups via calculation, static frequency import, or zone/site imports.
• Zone- and site-level exports cover multiple groups at once: Exporting zones, Exporting sites.
